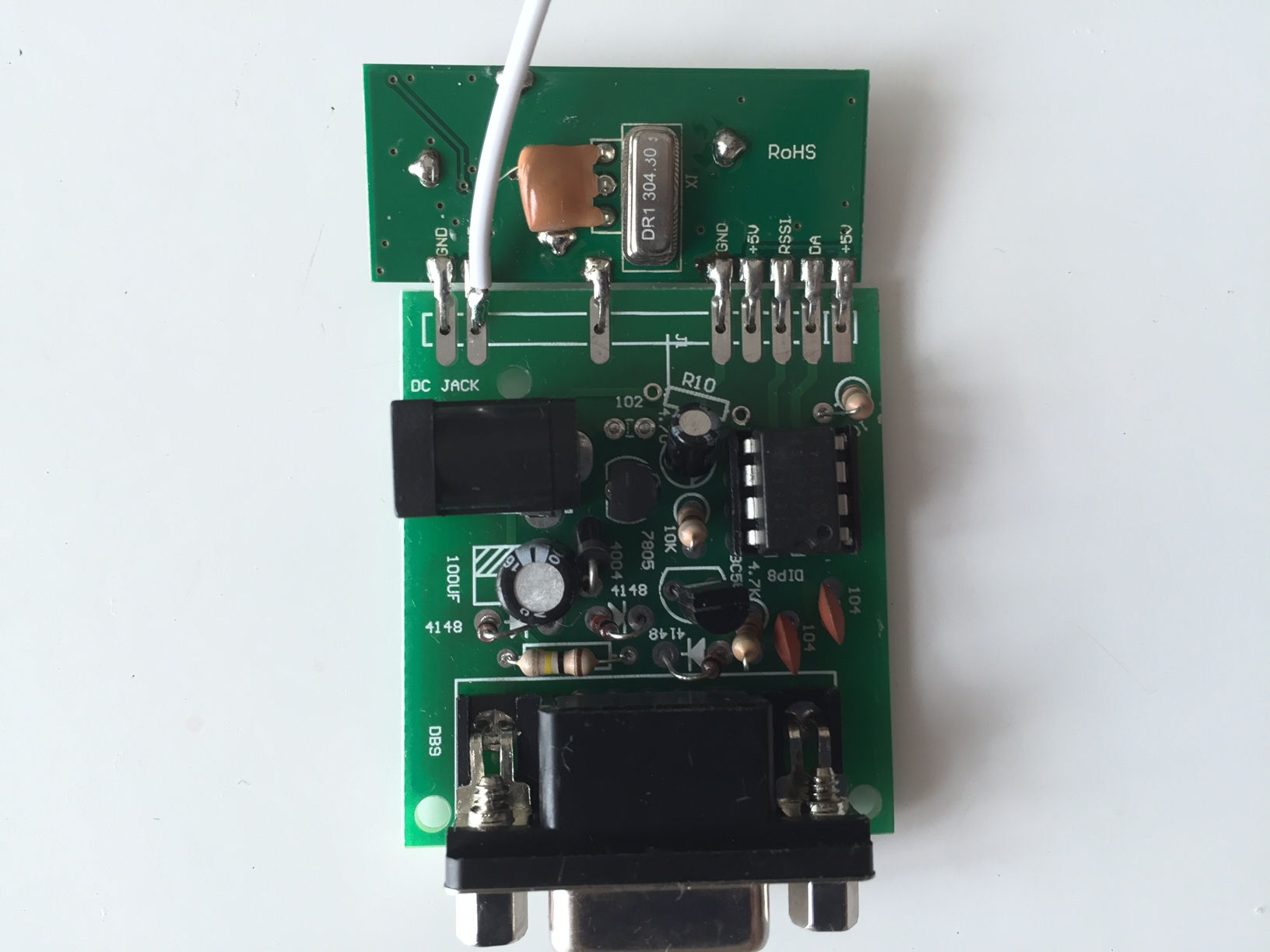

Active RFID Receiver with RSSI RF9315R, Serial Interface
This works with all our transmitters.

for working with RF8315T, the receiver will report the unique 4 characters ID and RSSI when the RF8515T is in range (8 meters).

for working with RF40315T, RF40315T-x, the receiver will report the unique 4 characters ID and RSSI when it is in range (40 meters).

It can handle 80 transmitters at the same time.

Dimension: 7 cm x 4 cm x 1.5 cm

Active RFID Receiver with RSSI RF9315R, Serial Interface

$69.50Price
  • Power Input No.
    Effective Range Depends on the transmitter
    Frequency 315 Mhz or 433 Mhz
    Setup & Maintenance Plug and Play! No driver is required

    1.  This does not work with USB/Serial adaptor! If you need to use USB version, please order RF9315R-USB. If you decide to use your USB/Serial adaptor, you need to plug in 9V to 12V center positive DC.

    2. The serial program to read the data such as putty, hypertminal need to set up as baud rate = 9,600, 8 bits data, no parity and 1 stop bit. NO FLOW CONTROL as well.
